Description

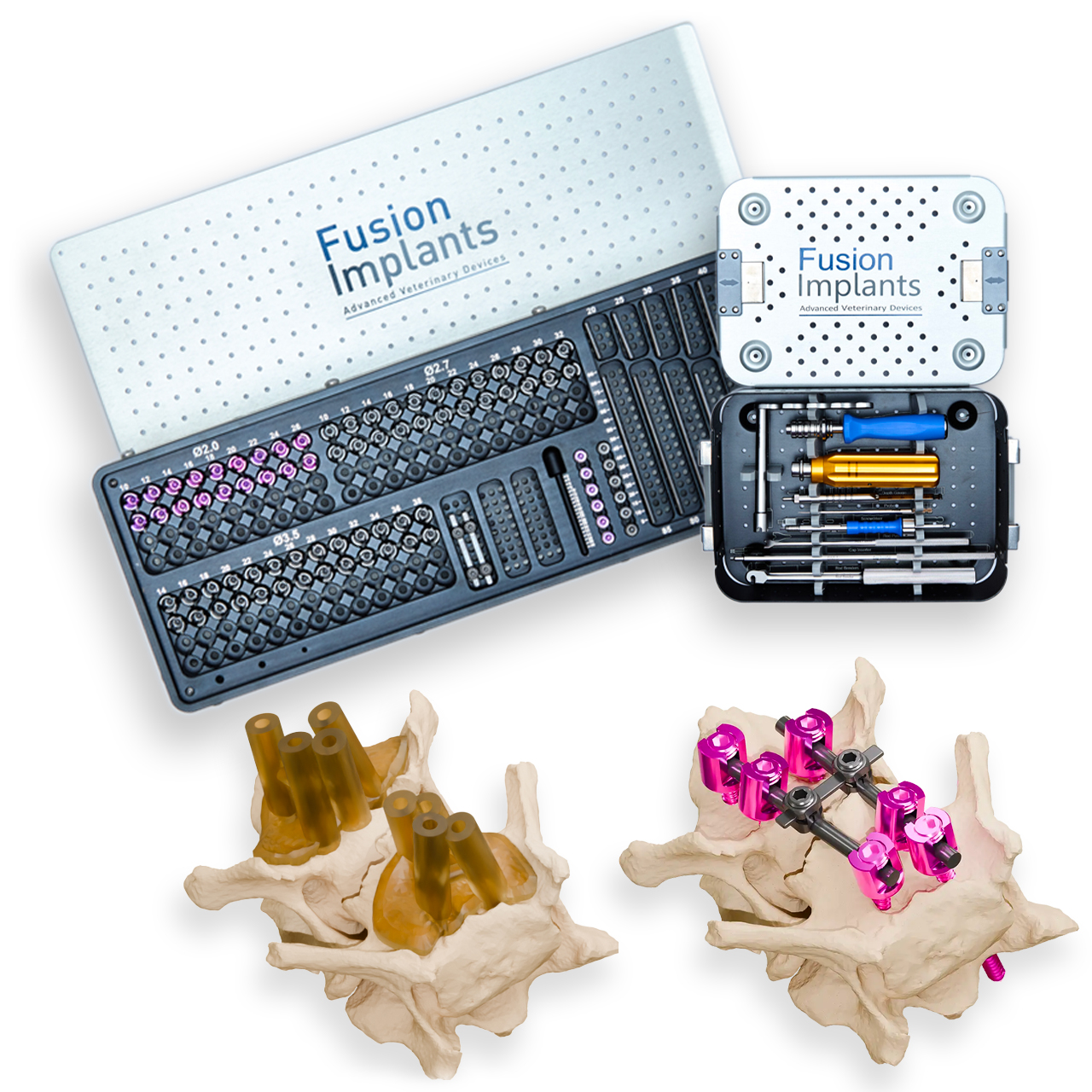

The Fusion Implants Pedicle Kit provides a comprehensive and easy-to-use solution for pedicle screw placement in vertebral stabilization procedures.
-
Titanium implants
-
Available in 2.0, 2.7 and 3.5 mm diameters
- Implants available individually and/or with a patient-specific guide and/or a patient-specific intervertebral cage
-
User-friendly instrumentation to reduce operative time
-
Imaging-compatible (X-ray / CT post-op friendly)
-
Designed for easy storage and sterilization
- Pricing strategy designed to make this technology accessible to all
- The Instrument Set contains:
| Reference | Description |
| FI-INS-DB-QC-1_5 | Ø1.5 mm Drill bit |
| FI-INS-DB-QC-2_1 | Ø2.1 mm Drill bit |
| FI-INS-DB-QC-2_9 | Ø2.9 mm Drill bit |
| FI-INS-PSYS-CTORQ | Counter-Torque |
| FI-INS-SCDR-HANDLE-MED | Screw Driver Handle – Medium |
| FI-INS-TLSD-HANDLE-3_0 | 3.0 Nm Torque Limiting Screw Driver Handle |
| FI-INS-DGAUGE-40 | 40mm Depth Gauge |
| FI-INS-PSYS-PROBE | Probe |
| FI-INS-PSYS-SDRIVE | Pedicle Screw Driver Insert |
| FI-INS-PSYS-RPUSH | Rod Pusher |
| FI-INS-PSYS-CAPINS | Cap Inserter |
| FI-INS-PSYS-RBEND | Rod Bender x2 |
| FI-KIT-PSYS-BOX-TOOL | Pedicle Instrument Box |
- The Implant Set contains:
| Reference | Description | Quantity |
| FI-IMP-PSYS-PS-2_0-XX | Pedicle Screw – 3.0 mm (ROD Diameter) 2.0 mm * X mm Locking Screw |
18 |
| FI-IMP-PSYS-PS-2_7-XX | Pedicle Screw – 3.0 mm (ROD Diameter) 2.7 mm * X mm Locking Screw |
24 |
| FI-IMP-PSYS-PS-3_5-XX | Pedicle Screw – 3.0 mm (ROD Diameter) 3.5 mm * X mm Locking Screw |
26 |
| FI-IMP-PSYS-PR-XX | Pedicle Rod 3.0mm – X mm in length | 28 |
| FI-IMP-PSYS-PCB-40 | Pedicle Cross Bar 3.0 mm – 40 mm in length |
1 |
| FI-IMP-PSYS-PSC | Pedicle Screw-3.0mm Cap | 12 |
| FI-KIT-PSYS-BOX | Pedicle Screw Caddy | 1 |
